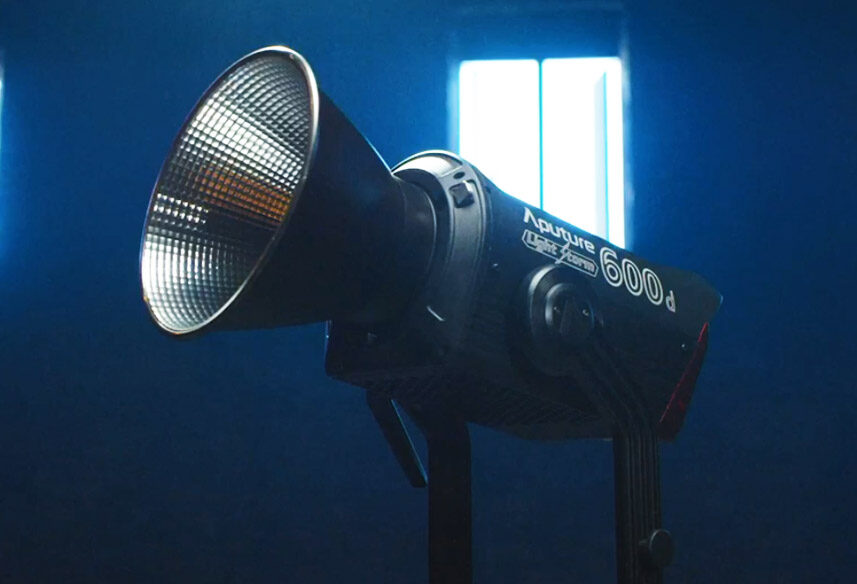

Aputure’s Ted Sim with the 600D.
In the livestream, Ted Sim announced the 600d. This light is similar to the rest of the “d” family, a single chip LED fixture that comes with a reflector and packs a ton of punch (a whole lot more on that later). They ALSO announced the release and final details of a light that they’ve been working on for quite some time, and actually announced quite a while back. Both fixtures represent a dedication to professional and independent filmmakers alike, providing tools that are always much more affordable than the competition, but also pack more features and convenience at the same time.
Here’s the low-down on these two lights.

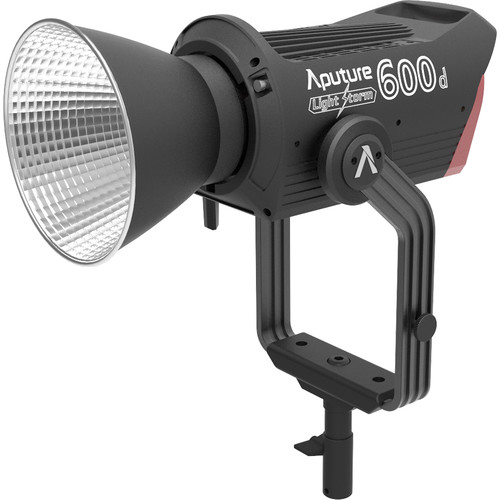

The Aputure Light Storm 600d
HMI lighting has always been kind of a sore subject for a lot of filmmakers. The bulbs are extremely expensive, the fixtures themselves are next to impossible to justify purchasing for yourself ($5,000 for just a lamp head with no ballast). They also have a lot of limitations as far as what sort of sets can accommodate them, since they have a huge power draw. For the majority of productions, when faced with the option to rent HMI or just use whatever lights you’ve got in your kit, most of the time you’ll choose the latter. It’s just a little easier, especially for productions with minimal crew.
Well, this might change that.
The Output/Power Draw of the 600d
The output of the 600D compared to its competition.
Now do yourself a favor and take a gander at the above chart (captured from Aputure’s live-stream). The 600D is considerably brighter than a M18 with a 1200watt bulb in it. That’s 100,000 lux compared to the 70,000 lux of a D12 HMI. I’m accustomed to renting an M18 on any production that needs a lot of light, as it’s the brightest HMI that a standard household circuit can power. This is one of the biggest considerations about HMI lighting. Go any brighter and you’ll need a generator and a savvy gaffer. That wasn’t always in the cards.
Oh but hey, now you can get an even brighter light — except this one is smaller, self-contained, and draws much less power. Now, lets take a look at the graph below:

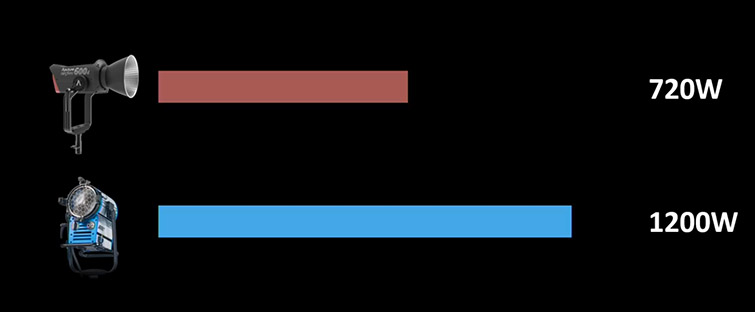

The power draw of the 600D compared to an Arri 1200W HMI.
The 600d has a max power draw of 720 watts. This means that you can fit THREE of these fixtures on a standard North American circuit (20 amps). So that gives you 300,000 lux without blowing the circuit (since it only pulls 2,160 watts of power draw). Now, with an Arri M18 or 1.2K HMI on the other hand, you probably wouldn’t ever even consider using more than one on that same circuit. Too risky.
Let me remind you, that’s three fixtures on one circuit that are individually brighter than one standard 1.2k HMI. No generators. Oh, also, if you wanted you could use batteries.

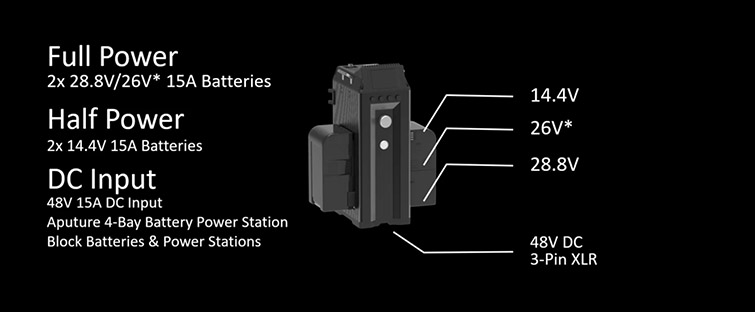

Power Options for the 600d
Yeah, that’s right. This fixture runs off of batteries. This device has multiple options for batteries and power usage. You can use four different voltage power sources, or you can choose to run the light at different output levels. And as far as batteries go that’s not all.

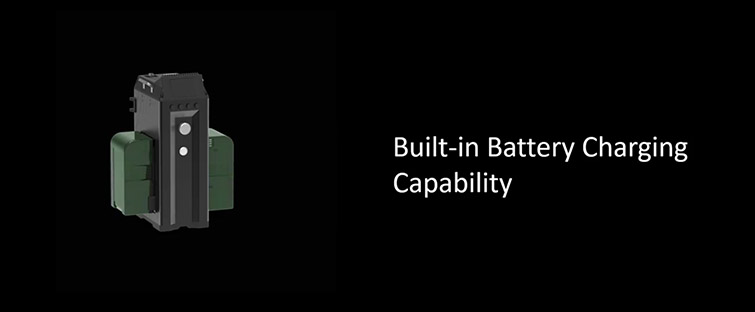

This light will charge your batteries while it operates. Not only does this mean you can charge the batteries that you’re using to power the fixture itself later on, but you could also charge your v-mount or other style batteries for your other devices on the light itself. So now you can charge your camera batteries while you light and light while you charge your camera batteries!
Weather Proofing and Other Features
The 600d is IP54 weatherproof. This means that you can leave this light out in the rain without a care in the world, then take it to the desert and drop it into the sand a hundred times and your investment will be no worse for the wear. All connections are weather sealed and all components are made with protection from the elements in mind.
As it relates to HMI lighting specifically, the dimming capabilities of this light are not to be diminished. HMI fixtures generally only dim to about 50%, or need to be cut down with scrims or other modifiers. The 600d has the capability to dim from 0-100% in smooth steps with a CRI of 95 or higher across the whole spectrum. So, you can dial in the perfect contrast ratios with almost zero color shift.

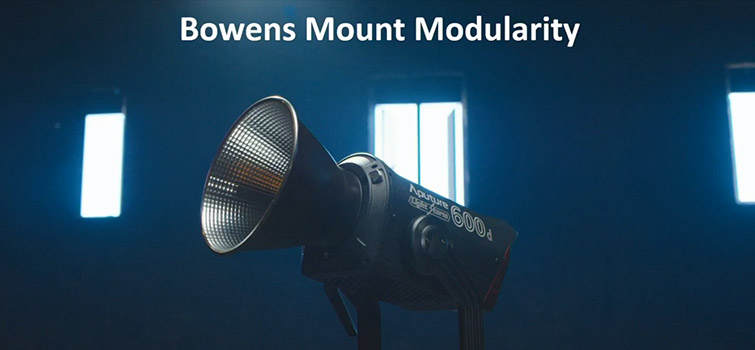

Bowens capability takes the 600d a notch even higher.
As with most of their other fixtures in this line, this fixture has a Bowens mount on the front. You can use all of your softboxes, lightdomes, chimeras, snoots, anything you have that is Bowens compatible. But you can also use their new F10 Fresnel, a 10 inch glass fresnel attachment that literally raises the output of this light from 100,000 lux at 1 meter to 200,000 lux. The F10 fresnel attachment provides a soft and even spread with increased output, and features a focusing mechanism allowing for a variable beam angle of 15-45 degrees.
There is no official price for this product yet, but Aputure does plan to have it ready and available for purchase by Q3 of this year.
